Descripción

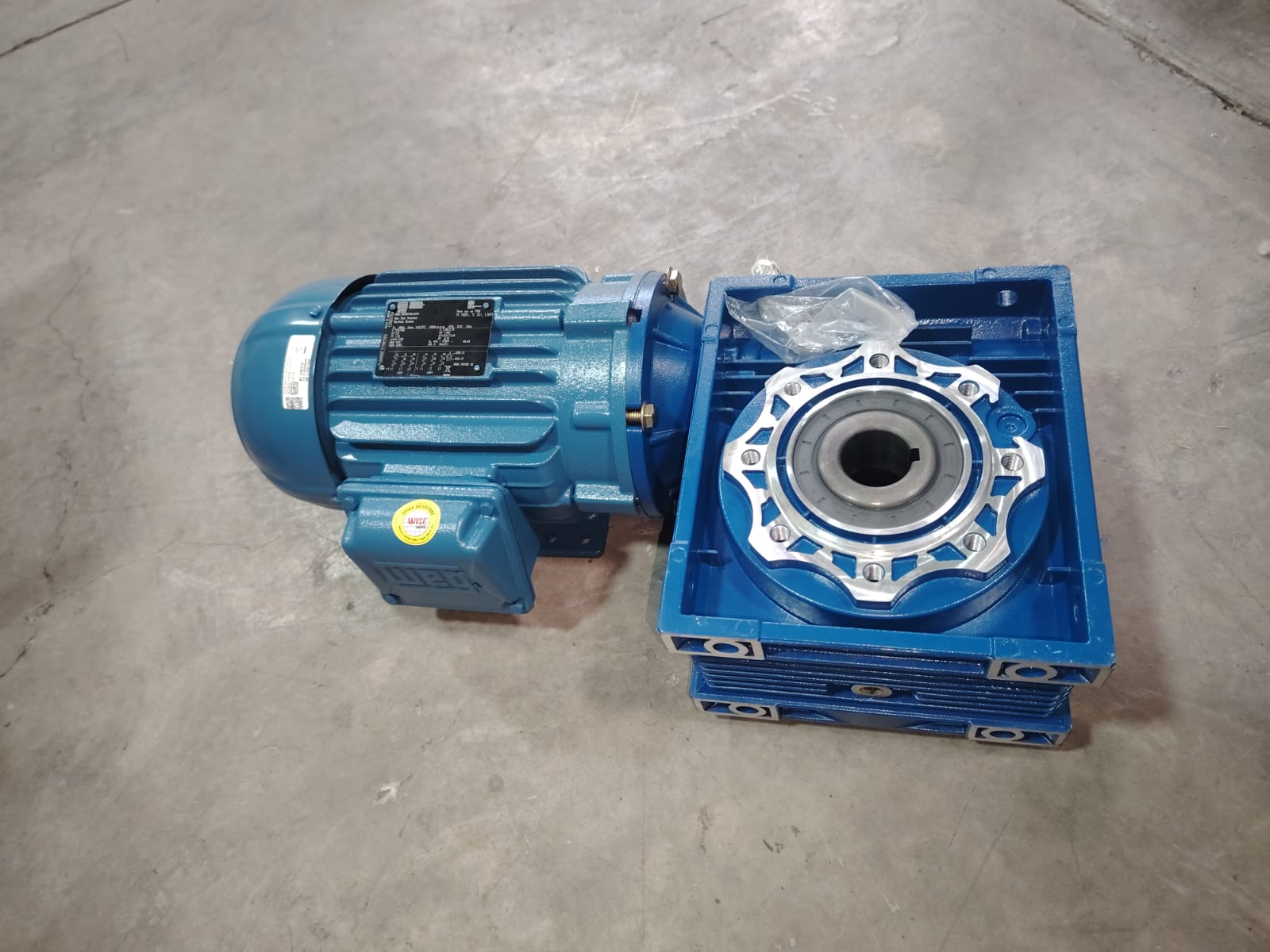

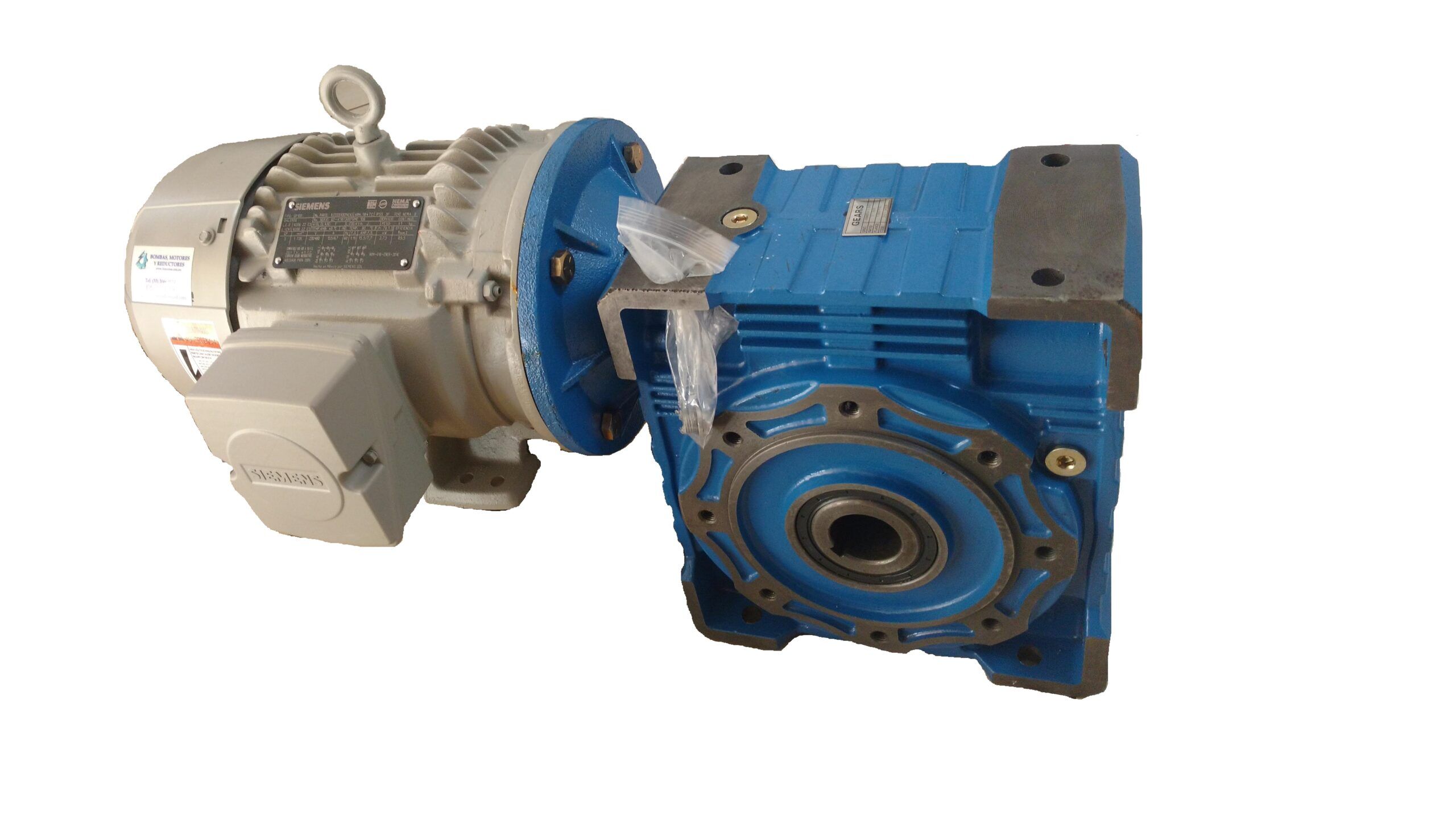

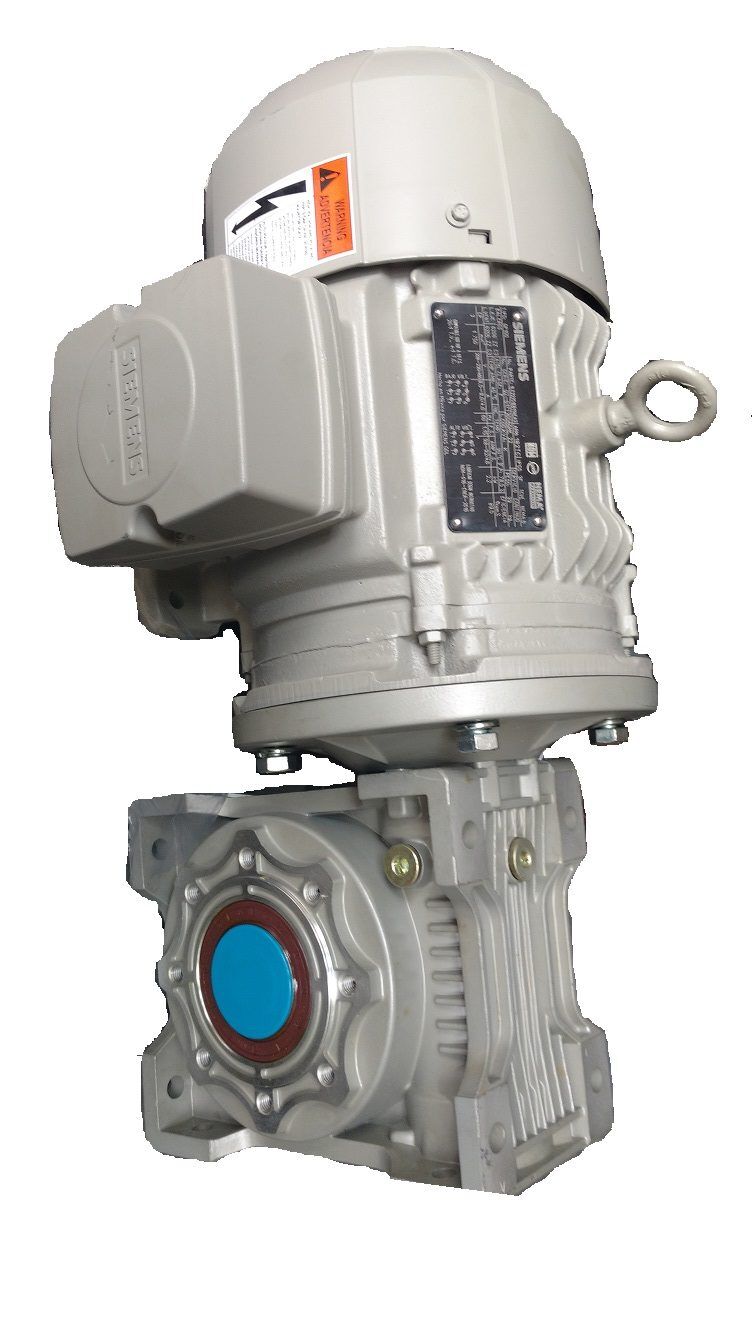

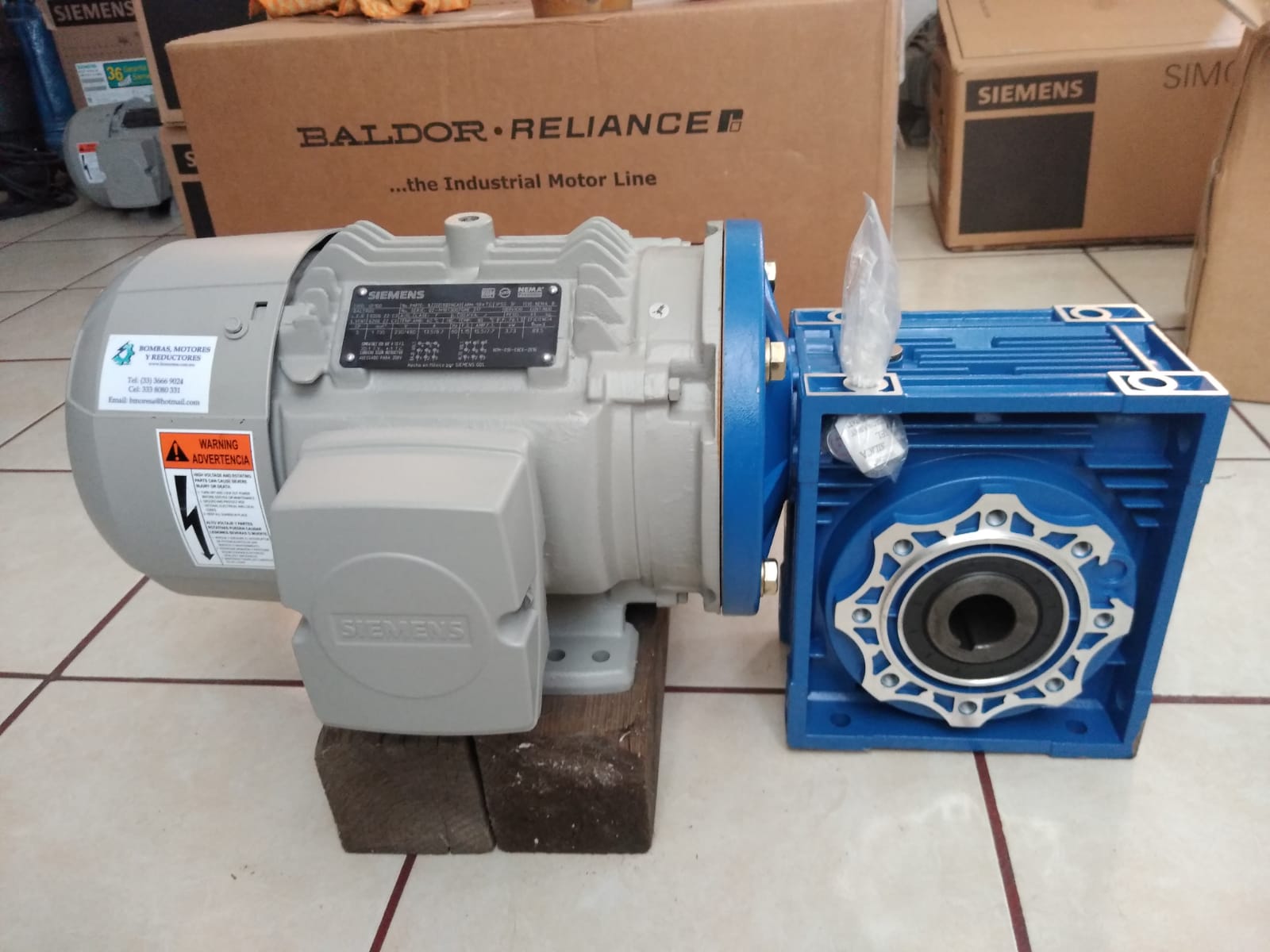

MOTORREDUCTOR CORONA-SINFIN, HT, DIFERENTES TAMAÑOS DE CAJA, DIFERENTES RELACIONES DE VELOCIDAD, FLECHA SALIDA LATERAL, CON MOTOR ELECTRICO, SIEMENS, TRIFASICO 220/440V DE 5 HP, 1750 RPM, ARMAZON 184TC.
| RELACION | RPM SALIDA | TAMAÑO CAJA | TORQUE LBS-IN | EJE HUECO | FACTOR DE SERVICIO | PRECIO 220/440V |
| 7.5 A 1 | 233 | 75 | 901 | 1-1/4″ | 1.29 | $17,960.00 |
| 10 A 1 | 175 | 75 | 1200 | 1-1/4″ | 1.03 | $17,960.00 |
| 15 A 1 | 117 | 90 | 1795 | 1-3/8″ | 1.42 | $20,300.00 |
| 20 A 1 | 88 | 90 | 2386 | 1-3/8″ | 1.07 | $20,300.00 |
| 25 A 1 | 70 | 110 | 3000 | 1-5/8″ | 1.49 | $23,500.00 |
| 30 A 1 | 58 | 110 | 3621 | 1-5/8″ | 1.41 | $23,500.00 |
| 40 A 1 | 44 | 110 | 4773 | 1-5/8″ | 1.04 | $23,500.00 |
| 50 A 1 | 35 | 130 | 6000 | 1-3/4″ | 1.2 | $26,990.00 |
| 60 A 1 | 29 | 150 | 8591 | 2″ | 1.32 | $35,490.00 |
| 80 A 1 | 22 | 150 | 9200 | 2″ | 0.97 | $35,490.00 |
